EHD200A BLDC driver
200 brushless motor driver, support AC input

EHD200 220V 200W brushless motor speed controller

Features:

3 phase brushless motor controller
High torque at low speed, wide speed setting range
Simple operation
Quick start & response
High efficiency and AC input
Display of motor speed, gearbox output speed or alarm code
Speed setting by knob , PWM/frequency signals from the PLC
Support alarm output or speed output to the PLC.
ACC/DEC time setting knob (0s~15s)

Specification

EHD200A is a high cost performance AC brushless speed controller newly developed by BGM company. It is for brushless motors 200W and lower power.

Electrical Parameters

Parameters	Typical1	Typical2
Input voltage	AC220V	AC110V
Rated current (Bus input)	2A(MAX)	2A(MAX)
Peak current (Bus input)	4A(MAX)	4A(MAX)
Matched brushless motor power	MAX 200W	MAX 100W
Motor speed control mode	1.By knob 2.By PWM 3.By pulse frequency 4.By serial port	1.By knob 2.By PWM 3.By pulse frequency 4.By serial port

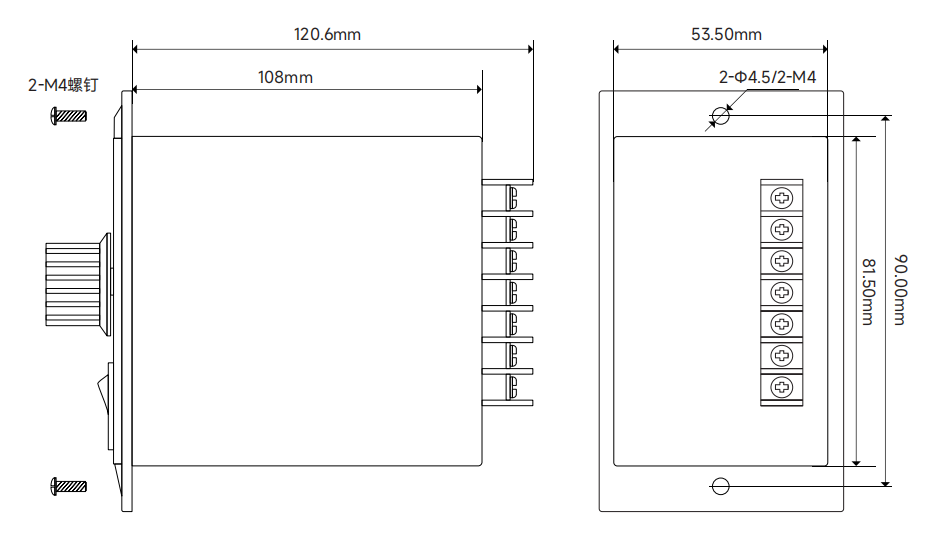

Dimension

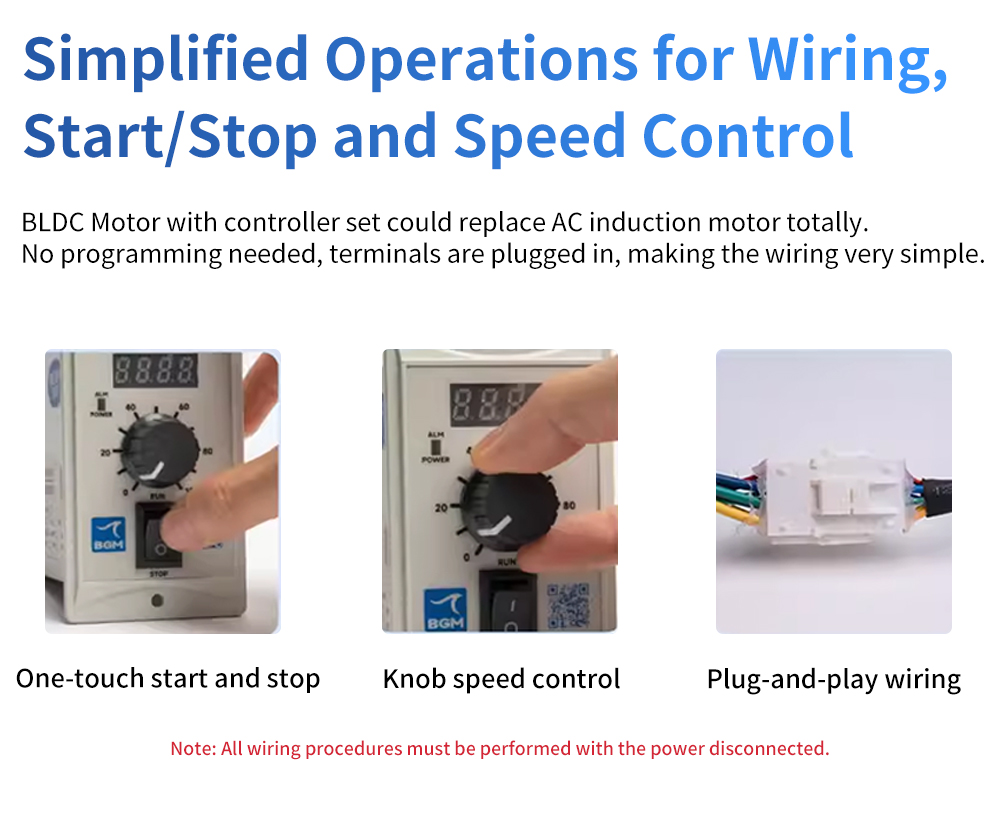

Control method

Speed setting

1.Controlled by the knob on the panel.(Default)

2.Controlled by PWM duty ratio through PLC(NPN type) output signal.

3.Controlled by PLC(NPN type) output signal. (1HZ=1RPM)

4.Set constant rotate speed by seriol port.(Please contact sales to proceed if needed)

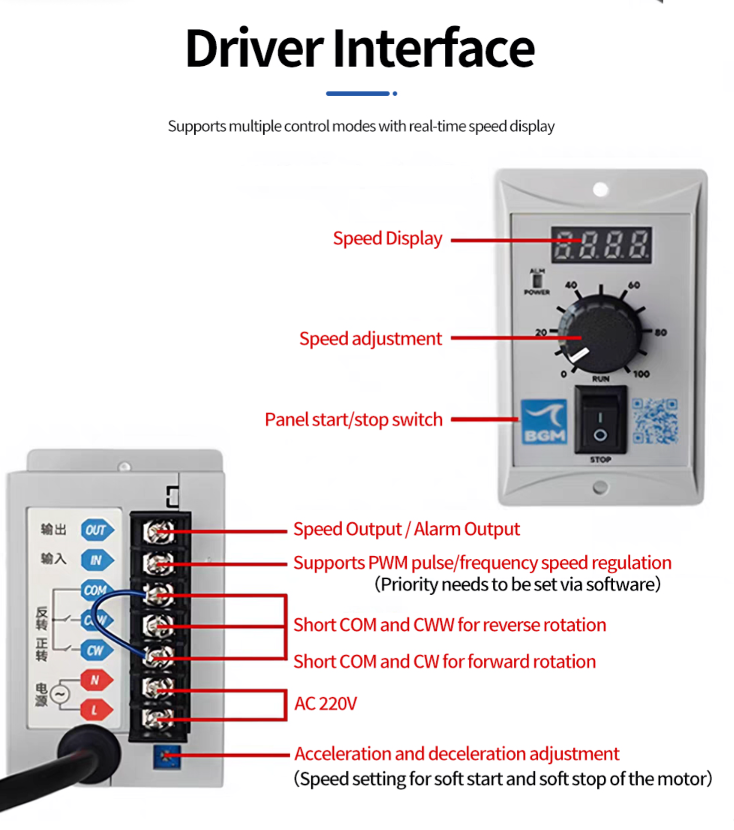

Direction control

1.When CW and COM port are conneted , the motor rotates clockwise. When CCW and COM port are connected, the motor rotates anticlockwise.

2.Controlled by a rocker switch.

3. Controlled by PLC. Connetc CW, CCW and COM with output end of PLC to control direction without external relay.

Start-Stop control

1.Controlled by start-stop switch on the panel

2.Controller by a roker switch

3.Controlled by a roker switch. Disconnect both CW and CCW, motor stops.

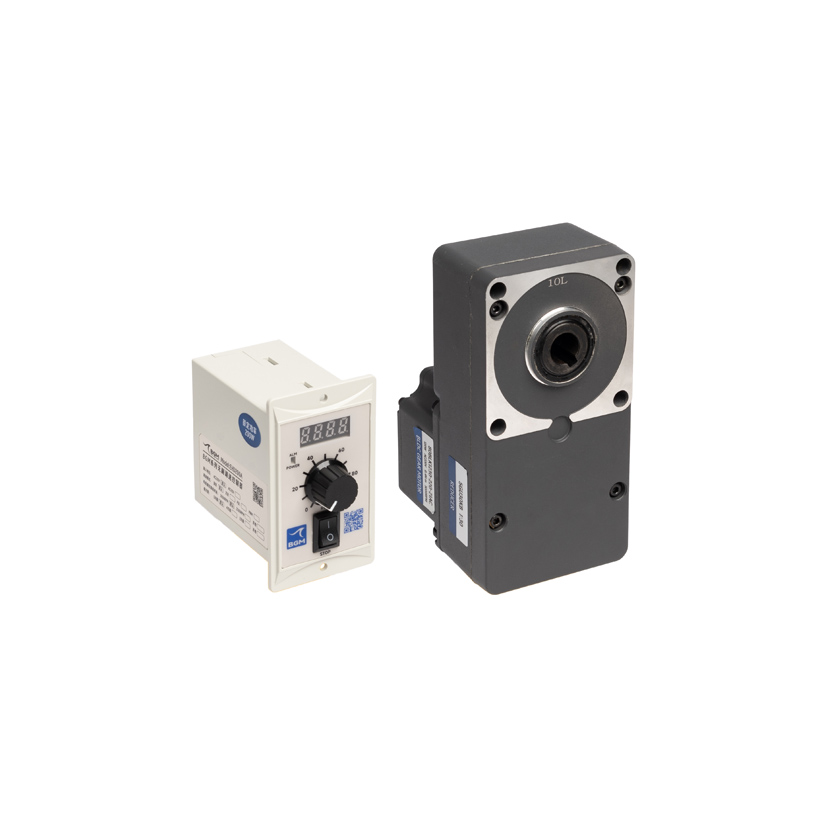

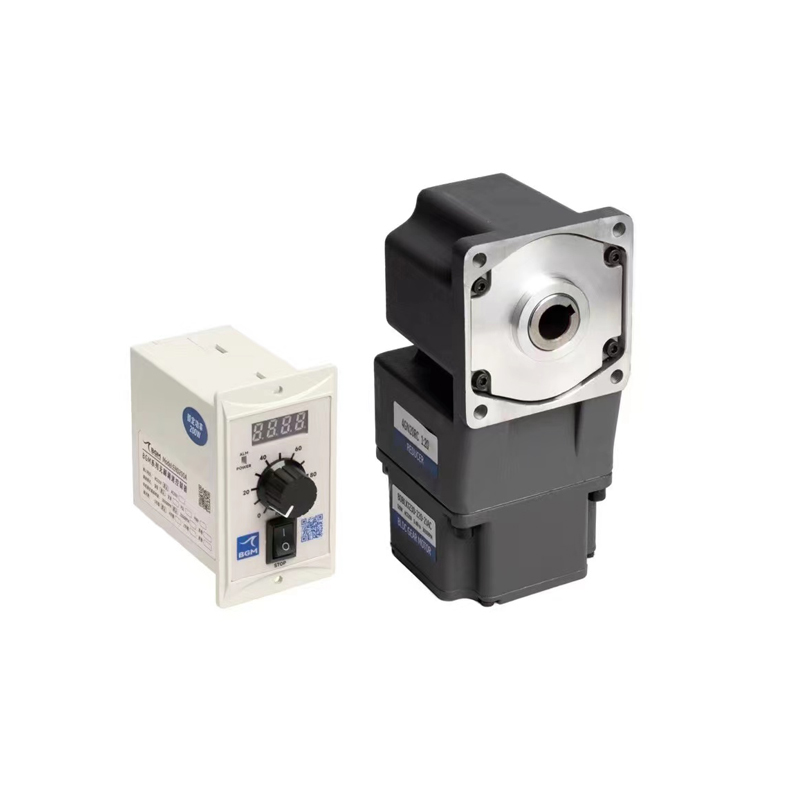

Matched motor

Packing and delievery

Recommended BLDC motors

57mm brushless dc motor

Optical axis motor

AC110-220v bldc motors, 60w-200w.

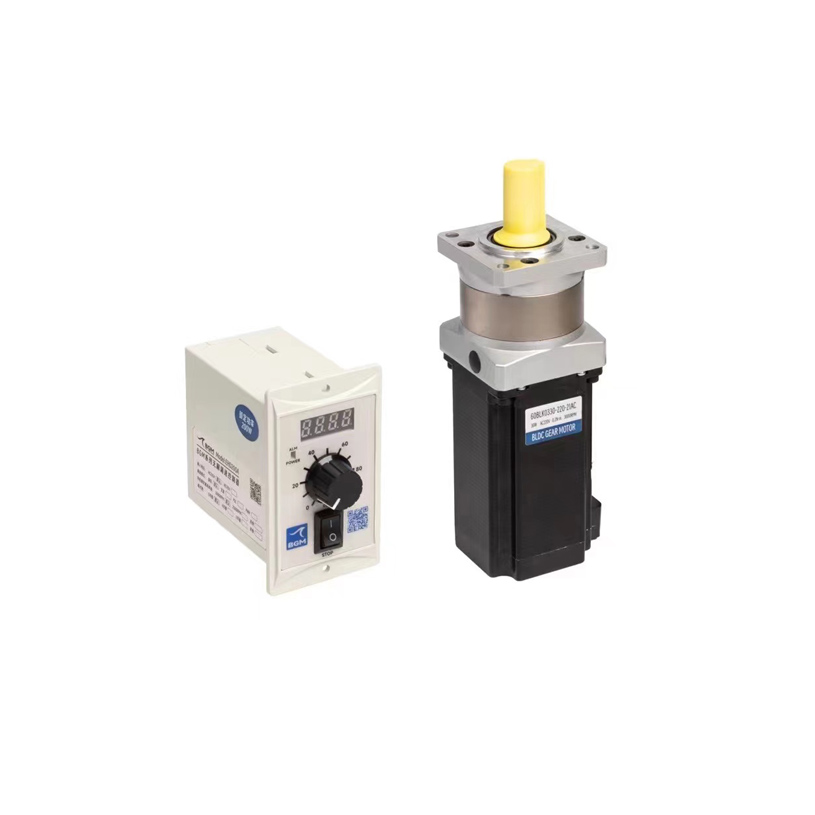

86mm-brushless-planetary-gear-1

Planetary reduction motor

AC110-220v bldc motors, 60w-200w. Gear ratio:1-20

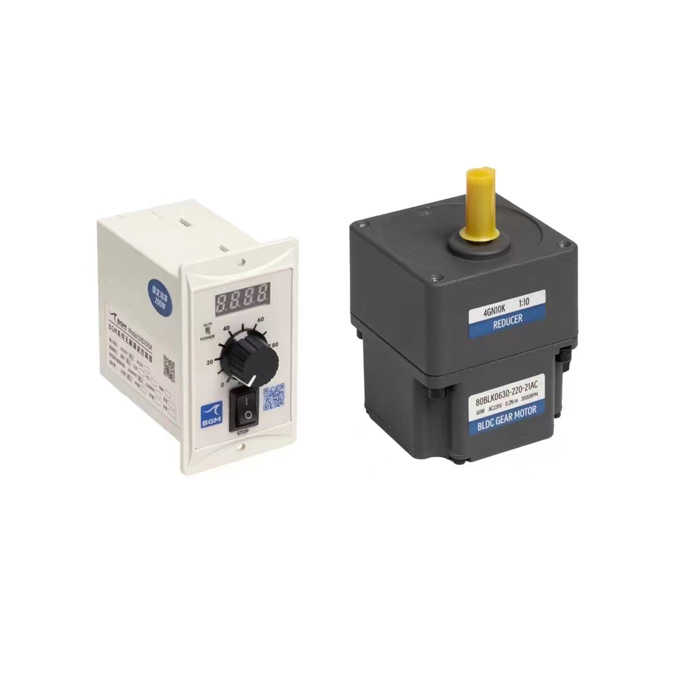

57mm-brushless-spur-gear

Gear reduction brushless motor

AC110-220v bldc motors, 60w-200w. Gear ratio:1-20
