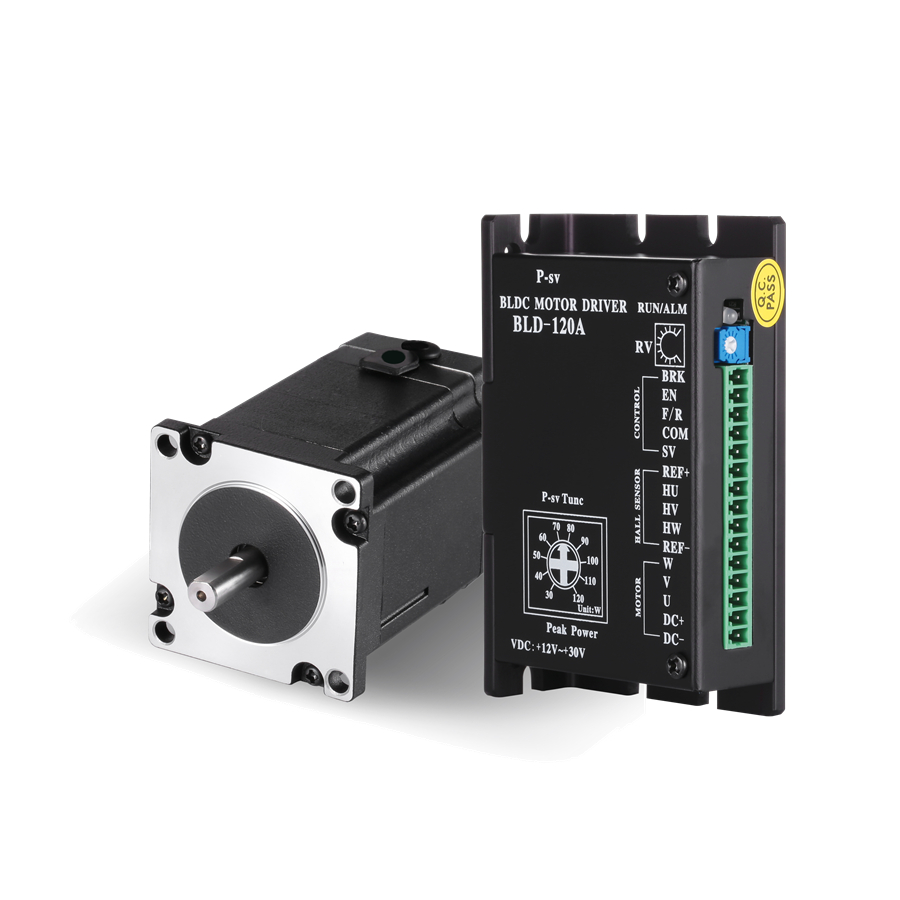

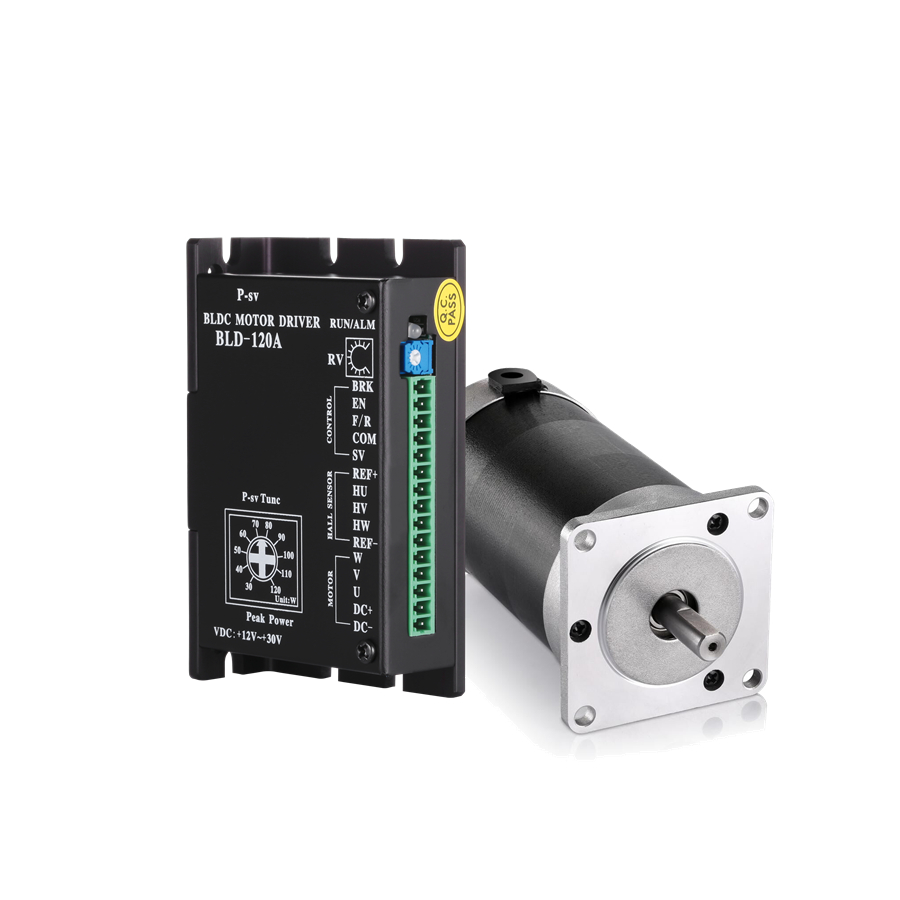

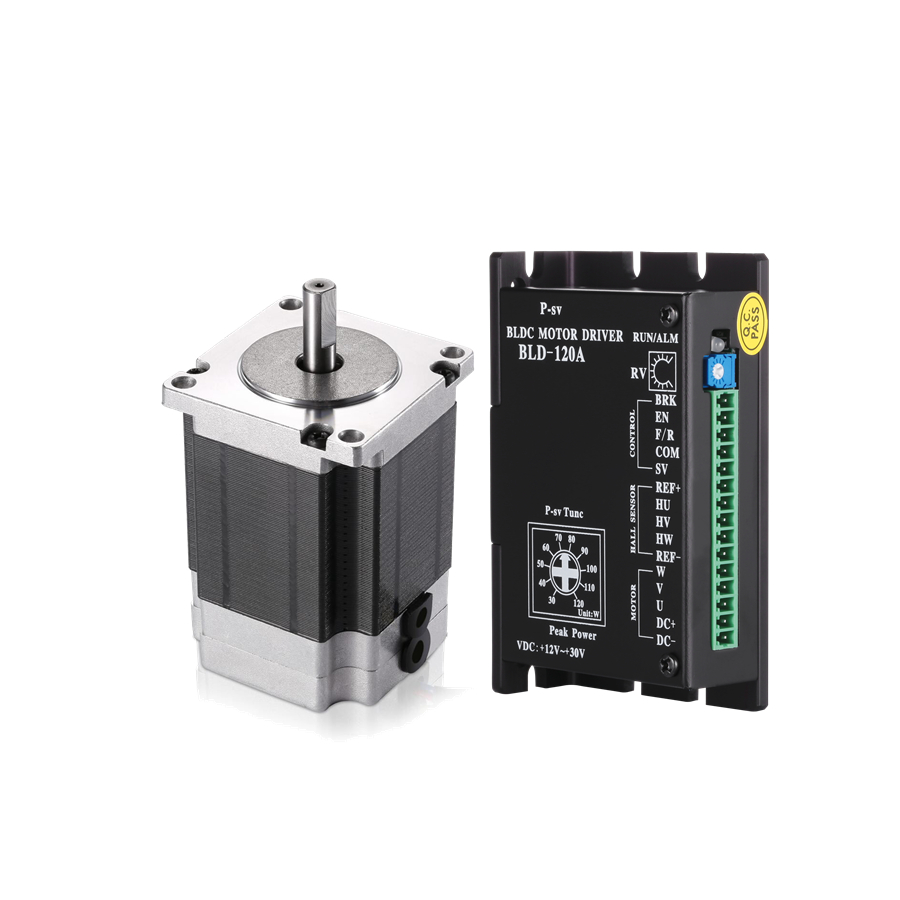

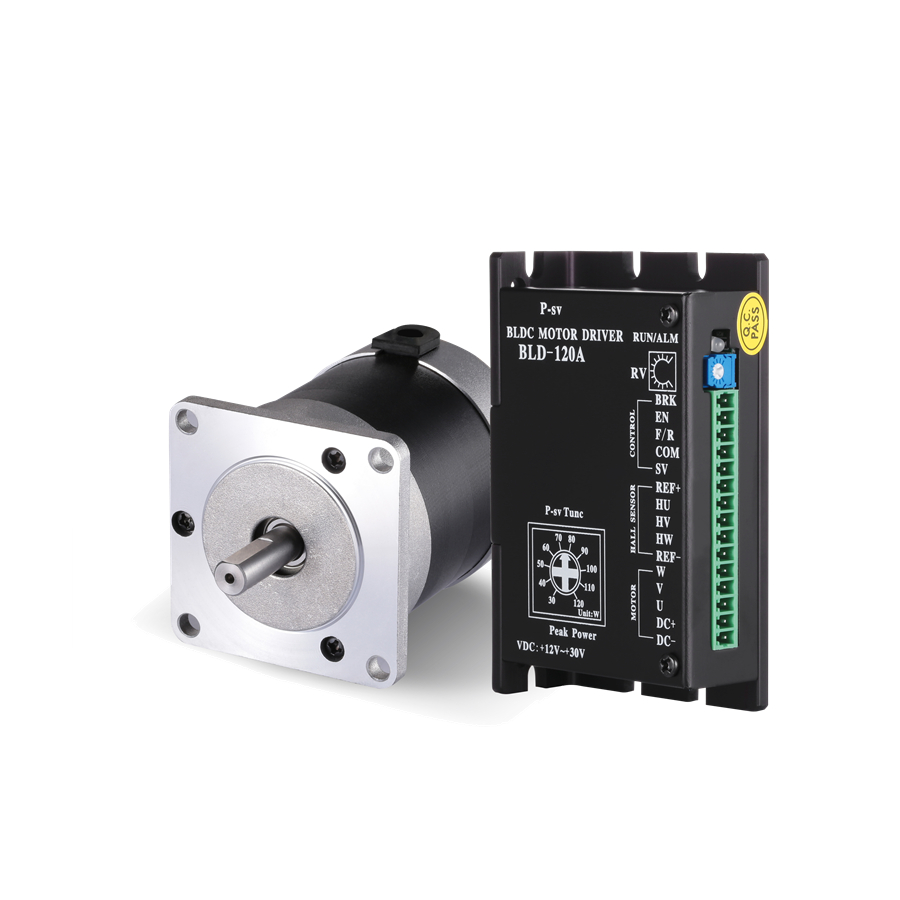

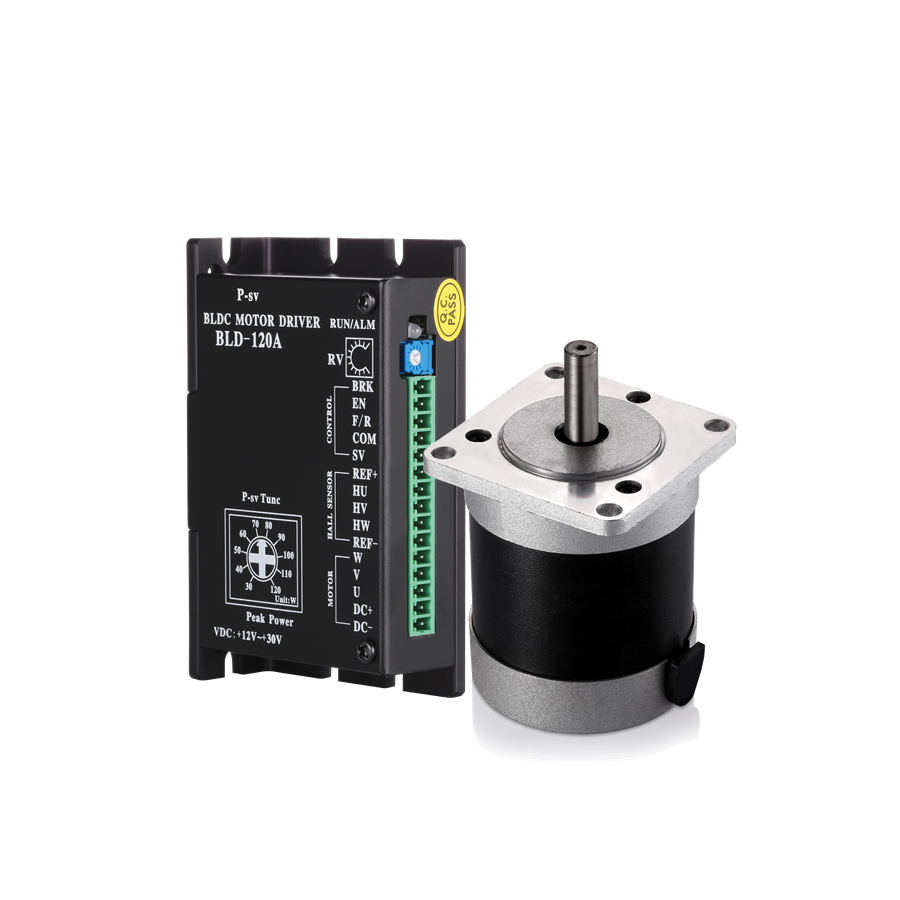

BLD series driver BLD-120B 24V BLDC motor driver

Features:

Input voltage 12-48V, 24V bldc motor controller

Support rated power of 10W~120W

Output power adjustment

Built-in RV speed setting

External potentiometer analog speed setting;

Open/ closed loop control

5S waiting time for locked-rotor

Alarm indication

Consult

Specification

BLD120B is a high- performance low-cost driver designed by ICAN-Tech and mainly for low voltage BLDC motor between 10W- 120W.

Electrical parameters
Input voltage: 12-30VDC Typical 24VDC
Current output: Typical6.2A
Phase current peak:12A
Heat Sinking Method:Natural cooling or forced cooling
Matched motor:10-70W BLDC(click to visit motors)
Occasions:avoid dust, oil and corrosive gases
Operating Temperature:-30°C~+55°C
Storage Temperature:-30°C~+70°C

Bldc driver dimension

Interface and Port

Bldc-120b interface

Port signal description

Signal category	Terminal	Functional Description
Power connection	GND	Power supply negative electrode
Power connection	24V	Power input 12-24V
Motor connection	U	Motor line U phase
	V	Motor line V phase
	W	Motor line W phase
Hall signal	GND	Hall sensor signal ground wire
	HU	Hall sensor signal HU
	HV	Hall sensor signal HU
	HW	Hall sensor signal HW
	+5V	Hall sensor signal power cord
Control signal	BRK	Motor brake stop control signal; motor runs when BRK and GND disconnect, otherwise, motor stops.
	EN	Stop signal terminal; EN connects GND, motor runs, otherwise motor stops.
	F/R	Motor direction control terminal; F/R and GND disconnect, motor will rotates clockwise, and otherwise, motor will rotate anticlockwise.
	GND	Ground wire
	SV	1. External potentiometer speed setting input. 2. External analog voltage input terminal 3. PWM speed setting input

Function setting

1. Brake
BRK and GND terminal disconnect in default. The motor will rapid stopped when BRK and GND in short circuit. Otherwise, the motor runs.
To add a switch or PLC between BRK and GND can control the motor start and rapid stop.

2.Direction control
F/R and COM disconnect, motor runs clockwise(CW). F/R and COM connect, motor runs anticlockwise(CCW).

3.Closed loop selection
SW1=0, SW2=0 Open loop
SW1=0, SW2=1 Closed loop 2 poles
SW1=1, SW2=0 Closed loop 4 poles
SW1=1, SW2=1 Closed loop 5 poles
Note: Under closed loop mode, the max speed value is 3000rpm by default.

4.P-SV current setting
The current limit adjustment knob is limiting the peak value of the motor phase current value, adjusting the current limit the heat of the winding, thereby protecting the motor.
Users can use the current limit value between scale 3 and scale 10, and adjust it to the maximum 10, corresponding to an output power of about 120W.
Note: If P-SV is adjusted to 0, the motor will not rotate, and if there is a speed adjustment value at this time, it will alarm and be locked-rotor.

5 Stalling torque holding
When the load suddenly rises, the motor would be locked. When the motor is locked, the torque will be maintained for 5s.
If the reason for the restriction of the rotor is solved within 5 seconds, the motor can rotate again. If not, the motor will stop and report 8times RED alarms.
Note: If users want to restart the motor after stalling alarms, the user needs to remove the obstacle and send a reset signal at the same time.

Speed regulation

BLD-120BB has 4 speed regulation mode as following.
1.Via built-in potentiometer
Motor speed is increase when RV knobs is rotated clockwise, when anticlockwise, motor speed decreases.

2.Via external potentiometer
Use a suitable potentiometer with a resistance value of 10kΩ .When connect external potentiometer, the middle terminal connects to SV, the other two terminals connect to +5V and GND.

3.External analog signal 0-5VDC
Put an analog signal 0-5V between SV and GND.The motor speed changes with the variation of voltage.
Note: When use external analog signal, the built-in potentiometer RV should be rotated anticlockwise to limit position.

4.BLDC PWM control
PWM signal is recommended high level 5V, low level 0V, frequency 3kHz (recommended range 3K ~ 15K Hz). The recommended speed range is duty ratio 5%-96%. The following is a measured example.
