BLD series driver BLRC800A

Features:

Input voltage VDC 12~60. bldc motor controller 48V
Suitable for brushless dc motor 48V 800W
Support RS485
Built in potentiometer RV speed control
External potentiometer speed control
External analog signal speed control
Impulse frequency Speed adjusting
Max output current P-sv setting
Open/closed loop control

Specification

BLR800A is designed by ICAN-Tech and mainly for 48v brushless dc motor less than 800w. With DSP controlling technology, it has features of high torque, low vibration, low noise, closed loop control and rich speed control modes.

Electrical parameters

Driver parameter	Min Value	Typical Value	Max Value
Voltage input DC (V)	12	48	60
Current outpu(A)	–	21.5	23
Motor speed range(rpm)	–	–	20000
Hall signal voltage(V)	–	–	5
Hall drive current (mA)	–	20	–
External potentiometer(KΩ)	–	10	–

Environmental indicators

Heat Sinking Method	Natural cooling or fan-forced cooling
Atmosphere	Avoid dust, oily mist and corrosive air
Operating Temperature	0 ~ +40C
Ambient Humidity	90% or less (non-condensing)
Vibration Resistance	5.7m/s² maximum
Storage Temperature	0 ~ +50C

Bldc driver dimension

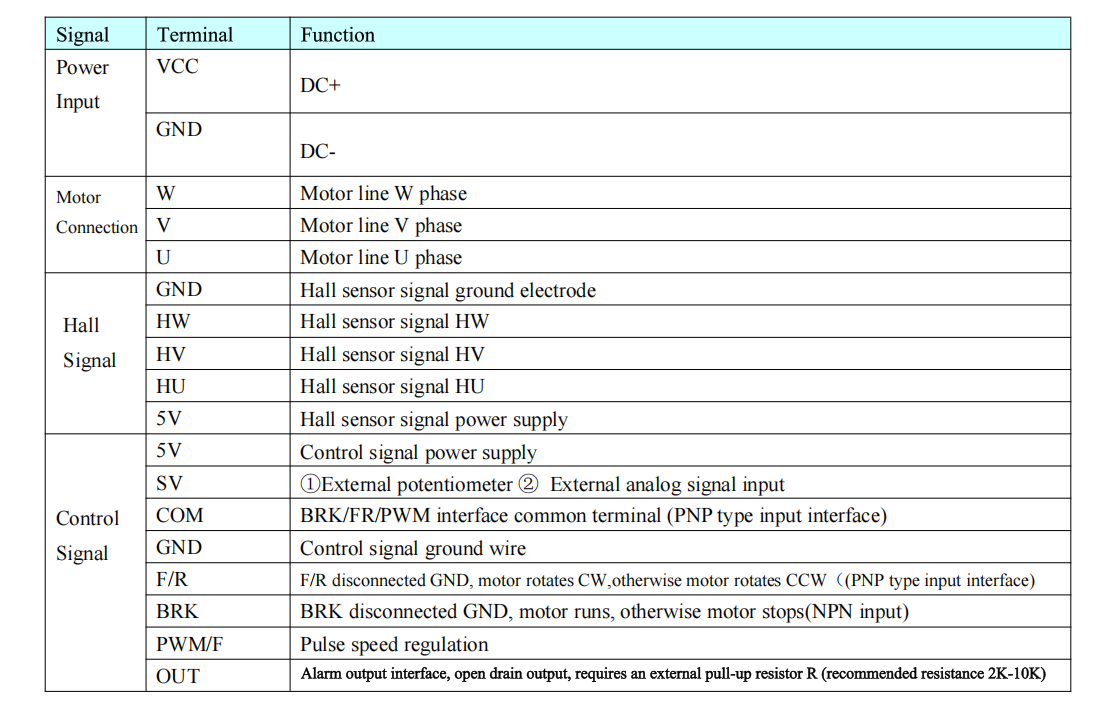

Interface and Wiring

Speed regulation

Bld-750B have 5 speed control method as following.

1 Via built-in potentiometer

Motor speed is increase when RV knobs is rotated clockwise, when anticlockwise, motor speed decreases. If user use other speed modes, RV should be rotated anticlockwise to limit position.

2 Via external potentiometer

Use a suitable potentiometer with a resistance value of 10kΩ; When connect external potentiometer, the middle terminal connects to SV, the other two terminals connect to +5V and GND
① RV should be rotated anticlockwise to limit position.
② Notice the connection sequence of the potentiometer.

3 Via external analog signal 0-5V

When use external analog signal, the built-in potentiometer RV must be OFF (RV should be rotated anticlockwise to limit position).
External analog speed control linearity test curve(open-loop,no load):
