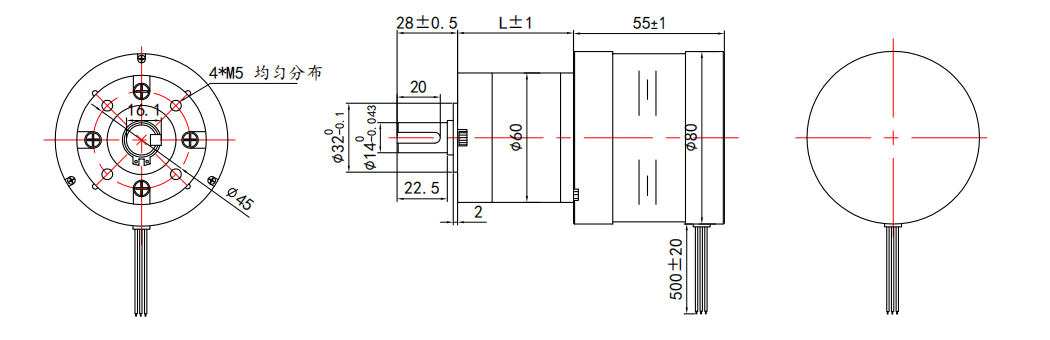

Model: 60YFWELU-80BLE1230-24-01A 120W series
BLDC motor specification
| Model | Rated voltage(V) | Rated torque(NM) | Rated speed(RPM) | No load speed(RPM) | Rated current(A) | Rated power(W) | Motor Pole number |
| 80BLE1230-24-01A | 24 | 0.4 | 3000 | 4000 | 8 | 126 | 8 |
BLDC motor with planetary gearbox specification
| Gear ratio stage | Gearbox Length(mm) | Model | Gear ratio | Output torque Max.(NM) | Rated rotational speed(RPM) | Matched Driver |
| 1 | 40.3 | 60YFWE04U-80BLE1230-24-01A | 1:3.60 | 1.61 | 705.88 | BLD-300B |
| 1 | 40.3 | 60YFWE05U-80BLE1230-24-01A | 1:5.33 | 2.01 | 562.85 | |
| 2 | 53.8 | 60YFWE13U-80BLE1230-24-01A | 1:13 | 4.42 | 230.77 | |
| 2 | 53.8 | 60YFWE15U-80BLE1230-24-01A | 1:15 | 5.10 | 200.00 | |
| 2 | 53.8 | 60YFWE18U-80BLE1230-24-01A | 1:18 | 6.12 | 166.67 | |
| 2 | 53.8 | 60YFWE28U-80BLE1230-24-01A | 1:28 | 9.53 | 107.14 | |
| 3 | 67.2 | 60YFWE43U-80BLE1230-24-01A | 1:43 | 13.18 | 69.77 | |
| 3 | 67.2 | 60YFWE52U-80BLE1230-24-01A | 1:52 | 15.94 | 57.69 | |
| 3 | 67.2 | 60YFWE96U-80BLE1230-24-01A | 1:96 | 29.43 | 31.25 | |
| 3 | 67.2 | 60YFWE121U-80BLE1230-24-01A | 1:121 | 36.00 | 24.79 | |
| 4 | 80.6 | 60YFWE154U-80BLE1230-24-01A | 1:154 | 42.69 | 19.48 |

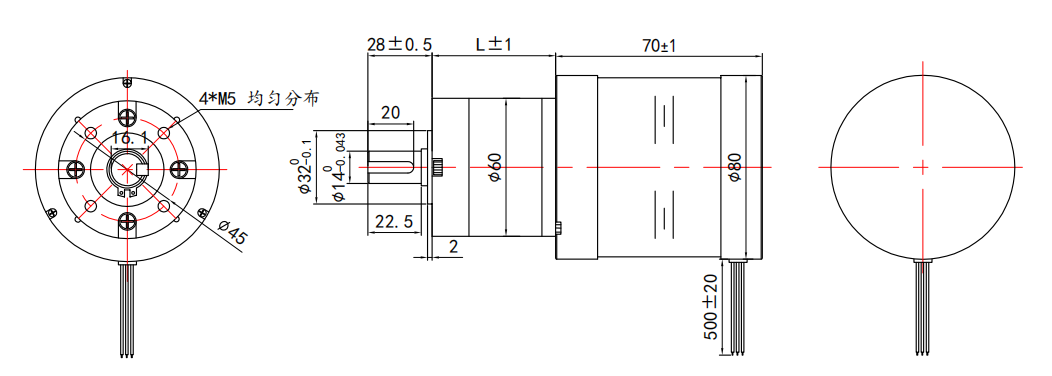

Model: 60YFWELU-80BLE2530-24-01A 250W series
BLDC motor specification
| Model | Rated voltage(V) | Rated torque(NM) | Rated speed(RPM) | No load speed(RPM) | Rated current(A) | Rated power(W) | Motor Pole number |
| 80BLE2530-24-01A | 24 | 0.84 | 3000 | 4000 | 14 | 252 | 8 |
BLDC motor with planetary gearbox specification
| Gear ratio stage | Gearbox Length(mm) | Model | Gear ratio | Output torque Max.(NM) | Rated rotational speed(RPM) | Matched Driver |
| 1 | 40.3 | 60YFWE04U-80BLE2530-24-01A | 1:3.60 | 3.21 | 705.88 | BLD-300B |
| 1 | 40.3 | 60YFWE05U-80BLE2530-24-01A | 1:5.33 | 4 | 562.85 | |
| 2 | 53.8 | 60YFWE13U-80BLE2530-24-01A | 1:13 | 8.85 | 230.77 | |
| 2 | 53.8 | 60YFWE15U-80BLE2530-24-01A | 1:15 | 10.21 | 200.00 | |
| 2 | 53.8 | 60YFWE18U-80BLE2530-24-01A | 1:18 | 12.25 | 166.67 | |
| 2 | 53.8 | 60YFWE28U-80BLE2530-24-01A | 1:28 | 18 | 107.14 | |
| 3 | 67.2 | 60YFWE43U-80BLE2530-24-01A | 1:43 | 26.37 | 69.77 | |
| 3 | 67.2 | 60YFWE52U-80BLE2530-24-01A | 1:52 | 31.89 | 57.69 |

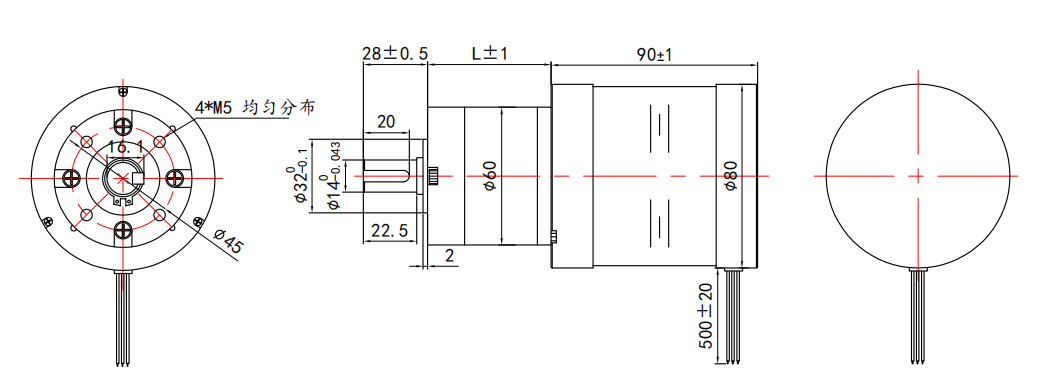

Model: 60YFWELU-80BLE3830-24-01A 380W Series
BLDC motor specification
| Model | Rated voltage(V) | Rated torque(NM) | Rated speed(RPM) | No load speed(RPM) | Rated current(A) | Rated power(W) | Motor Pole number |
| 80BLE3830-24-01A | 24 | 1.26 | 3000 | 4000 | 21 | 378 | 8 |
BLDC motor with planetary gearbox specification
| Gear ratio stage | Gearbox Length(mm) | Model | Gear ratio | Output torque Max.(NM) | Rated rotational speed(RPM) | Matched Driver |
| 1 | 40.3 | 60YFWE04U-80BLE3830-24-01A | 1:4.25 | 4 | 705.88 | BLD-750 |
| 2 | 53.8 | 60YFWE13U-80BLE3830-24-01A | 1:5.33 | 13.27 | 230.77 | |
| 2 | 53.8 | 60YFWE15U-80BLE3830-24-01A | 1:15 | 15.31 | 200.00 | |
| 2 | 53.8 | 60YFWE18U-80BLE3830-24-01A | 1:18 | 18 | 166.67 | |
| 3 | 67.2 | 60YFWE43U-80BLE3830-24-01A | 1:43 | 36 | 69.77 |
